Products – Avish Aviation Equipment Pvt. Ltd.

Model No: 40KVA LCA
AC Output Voltage: 200V Line to Line, 115V Line to Neutral, 400Hz
AC Power Rating: 40KVA
DC Voltage:26-29V
DC Power Rating: 25A(700W)
DC Output Ripple Voltage: Less than 1000mV
AC Protection : Over Voltage, Under Voltage, Over Load, Over Frequency, Under Frequency
DC Protection: Over Voltage, Under Voltage, Over Load
Engine: 6 Cylinder, Air cool Engine ,75.8KW, 2000RPM
Alternator: 40KVA, 400Hz, 2000RPM
Dimensions : Length(2300), Width(1500), Height(1450)
Weight: 1650Kg
Engine Safety: Low Lube Oil Pressure, High engine Temperature, V Belt Failure
Easily Towable with Integrated
Emergency stop
Heavy Duty Indoor / Outdoor Enclosure with Powder Coated Finish
2 No’s 6pin Nato Connector with 20 Meter Cable
7” Touch Screen TFT LCD Display
Internal Fuel Tank with Capacity for 8 Hours Running
12V,70Ah X 2 No Battery

Model No: 40KVA AC DC GPU (SHAKTI ENGINE)
AC Output Voltage From SFC: 200V Line to Line, 115V Line to Neutral, 400Hz
AC Power Rating: 40KVA,100A
DC Voltage:26-29V
DC Power Rating: 32KW,1250A Peak
DC Output Ripple Voltage: Less than 320mV
AC Protection : Over Voltage, Under Voltage, Over Load, Over Frequency, Under Frequency
DC Protection: Over Voltage, Under Voltage, Over Load
Engine: 83 HP/61 KW, 1500rpm
Alternator:63KVA, 440V (L-L), 50Hz , 1500rpm
Dimensions : Length(3.75mtrs), Width(1.5mtrs), Height(1.65mtrs)
Ground Clearance: 180mm
Engine Safety: Low Lube Oil Pressure, High engine Temperature, V Belt Failure
Emergency stop
Heavy Duty Indoor / Outdoor Enclosure with Powder Coated Finish
Internal Fuel Tank with Capacity for 10 Hours Running

Model No: 40KVA AC/DC TOWABLE GPU WITH SFC
AC Output Voltage Form SFC: 200V Line to Line, 115V Line to Neutral, 400Hz
AC Power Rating: 40KVA @0.8 Pf
AC Protection : Over Voltage, Under Voltage, Over Load, Over Frequency, Under Frequency
DC Voltage:26-29V
DC Power Rating: 32KW,1250A Peak
DC Output Ripple Voltage: Less than 320mV
DC Protection: Over Voltage, Under Voltage, Over Load
Engine: 83HP/61KW, 1500rpm
Alternator: 63KVA, 440V (L-L), 50Hz, 1500rpm
Dimensions : Length(2.7mtrs), Width(1.7mtrs), Height(1.7mtrs)
Engine Safety: Low Lube Oil Pressure, High engine Temperature, V Belt Failure
Easily Towable with Integrated
Emergency stop
Heavy Duty Indoor / Outdoor Enclosure with Powder Coated Finish
Internal Fuel Tank with Capacity for 10 Hours Running

Model No: 90KVA AC TOWABLE GPU
AC Output Voltage: 200V Line to Line, 115V Line to Neutral, 400Hz
AC Power Rating: 90KVA @0.8 Pf
AC Protection : Over Voltage, Under Voltage, Over Load, Over Frequency, Under Frequency
Engine: 115KW, 2000rpm
Alternator: 100KVA, 200V (L-L),400Hz, 2000rpm
Dimensions : Length(2.7mtrs), Width(1.7mtrs), Height(1.7mtrs) S
Engine Safety: Low Lube Oil Pressure, High engine Temperature, V Belt Failure
Easily Towable with Integrated
Emergency stop
Heavy Duty Indoor / Outdoor Enclosure with Powder Coated Finish
Internal Fuel Tank with Capacity for 10 Hours Running

Model No: AN 32 GPU
AC Output Voltage: 115V Line to Neutral, 400Hz
AC Power Rating: 12 KVA
DC Voltage 1: 0-70V
DC Power Rating 1: 48KW
DC Voltage 2: 28V
DC Power Rating 1: 18KW
DC Output Ripple Voltage: Less than 320mV
AC Protection : Over Voltage, Under Voltage, Over Load, Over Frequency, Under Frequency
DC Protection: Over Voltage, Under Voltage, Over Load
Engine:115KW, 2000rpm
Alternator: 100KVA, 200V (L-L), 400Hz, 2000rpm
Dimensions : Length(4mtrs), Width(1.5mtrs), Height(1.5mtrs)
Engine Safety: Low Lube Oil Pressure, High engine Temperature, V Belt Failure
Emergency stop
Heavy Duty Indoor / Outdoor Enclosure with Powder Coated Finish

Special High Density High Discharge LiFePO4 Battery (life up to 2000 cycle)
Peak Aircraft Starting Current up to 1500A/ Short Circuit Current 4000A (Nominal)
3 Pin NATO DC Connector with 2 Meter Cable
Castor Wheel Mounted Equipment with One Person Operation
Operating -30°C to +55°C
Advanced DSP Based Charger
Charging from 190V-270V, 50Hz, Single Phase Input
Light Weight Startup Power (Less than 60Kg)
Suitable for Civil, Military Helicopters & Aircraft with 28V DC Startup
LCD Display for Voltage
Output ON/OFF Switch

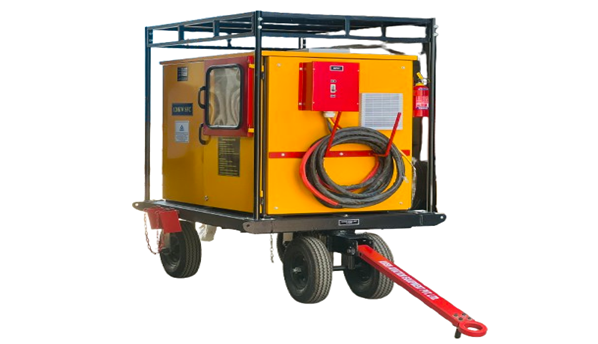

Model No: 120 KVA SFC GPU
AC Output Voltage: 200V Line to Line, 115V Line to Neutral, 400Hz
AC Power Rating: 120 KVA @0.8 Pf
AC Protection : Over Voltage, Under Voltage, Over Load, Over Frequency, Under Frequency
Easily Towable with Integrated Towbar.
Emergency stop
Heavy Duty Indoor / Outdoor Enclosure with Powder Coated Finish
10 mtrs AC output cable with 6 pin NATO connector.
10 mtrs AC input cable.
